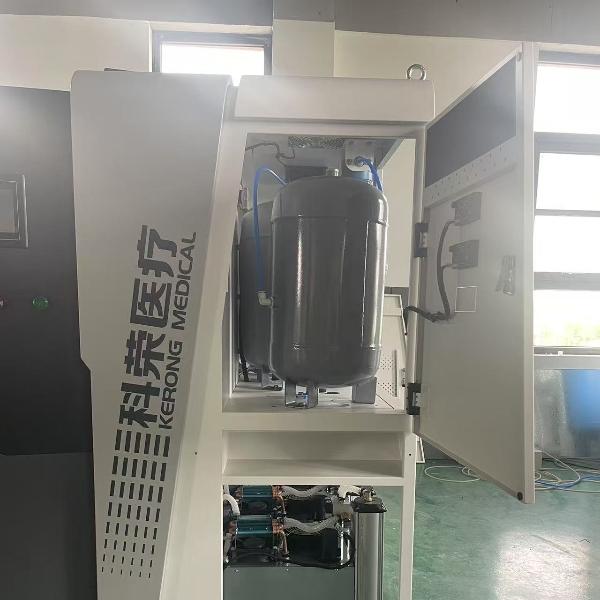

230V Power Supply Energy Efficiency Oxygen Gas Generation System
Product description
Our 230V Power Supply Energy Efficiency Oxygen Gas Generation System is engineered for reliable, on-site oxygen production with minimal energy consumption. Designed to operate on a standard 230V power source, it is ideal for hospitals, laboratories, and industrial facilities requiring a stable and continuous oxygen supply. Utilizing advanced Pressure Swing Adsorption (PSA) technology, it delivers oxygen with purity up to 95%, ensuring consistent performance. The compact system integrates compression, drying, filtration, and smart controls into one unit. With automatic operation, low maintenance, and optimized energy efficiency, this generator offers a sustainable and cost-effective alternative to cylinders or liquid oxygen.
Technical Parameters
| Model | Capacity (Nm3/hr) | Purity(%) | Air consumption (m3/min) | Inlet air requirements | Oxygen specs | Electricity | Inlet/ outlet pipe | Diemensions (mm) | N.Weight |
| KROB-1 | 2.7 | 90 | 0.65 | Air Inlet Temperature Range: 0℃~40℃;
Air inlet pressure range: 4~7barG;
Air inlet dew point: <+5°C;
Particles: <5 micron;
Oil: <3 mg/m3 | Outlet pressure:0.4MPa-0.65MPa
Water content:≤0.07g/m³
CO2:≤10PPm(V/V)
CO:≤1PPm(V/V)
Dust content:≤0.2mg/m³
Noise level:≤78dB(A) | 0.2KW/220V/230V/50Hz/60Hz | DN15/ DN15 | 480*730*1800 | 310 |
| 2.6 | 93 |
| 2.5 | 95 |
| KROB-2 | 5.4 | 90 | 1.3 | 0.2KW/220V/230V/50Hz/60Hz | DN20/ DN15 | 480*950*1800 | 450 |
| 5.2 | 93 |
| 5 | 95 |
| KROB-3 | 8.1 | 90 | 1.95 | 0.2KW/220V/230V/50Hz/60Hz | DN20/ DN15 | 480*1200*1800 | 600 |
| 7.8 | 93 |
| 7.5 | 95 |
| KROB-4 | 10.8 | 90 | 2.5 | 0.2KW/220V/230V/50Hz/60Hz | DN25/ DN15 | 480*1400*1800 | 750 |
| 10.3 | 93 |
| 10 | 95 |
| KROB-5 | 13.5 | 90 | 3.2 | 0.2KW/220V/230V/50Hz/60Hz | DN25/ DN15 | 480*1700*1800 | 900 |
| 12.8 | 93 |
| 12.5 | 95 |
| KROB-6 | 16.2 | 90 | 3.9 | 0.2KW/220V/230V/50Hz/60Hz | DN40/ DN15 | 480*1900*1800 | 1050 |
| 15.1 | 93 |
| 15 | 95 |
| KROAB-7 | 17.7 | 90 | 4.3 | 0.2KW/220V/230V/50Hz/60Hz | DN40/ DN15 | 480*2100*1800 | 1200 |
| 17.5 | 93 |
| 16.9 | 95 |
| KROAB-8 | 21.6 | 90 | 5 | 0.2KW/220V/230V/50Hz/60Hz | DN40/ DN15 | 480*2300*1800 | 1400 |
| 20.3 | 93 |
| 20 | 95 |
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
